ballistic face shield
Vigard™ Visors are supplied to major ballistic helmet manufacturers worldwide for military, para-military, law enforcement, bomb disposal, and EOD applications.
Vigard™ visors are designed to offer entire facial protection from the rim of the helmet to below the chin against multiple hits of ballistic threats, as well as fragmentation and blunt impact.

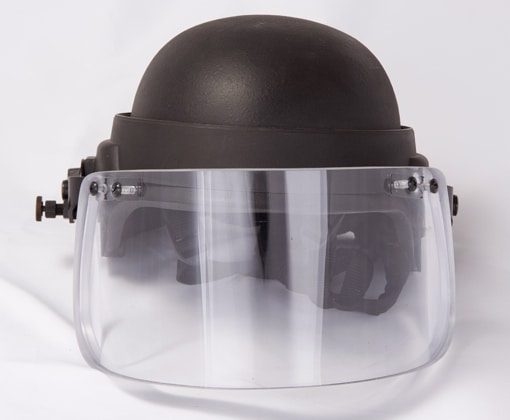

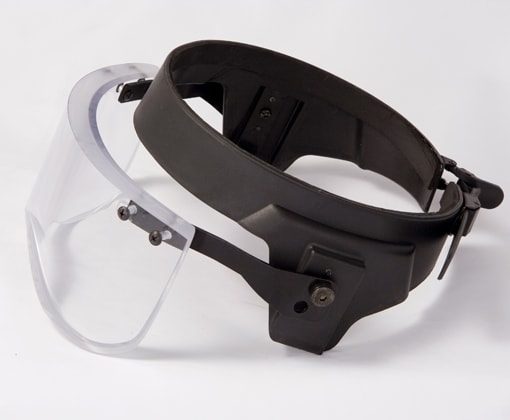

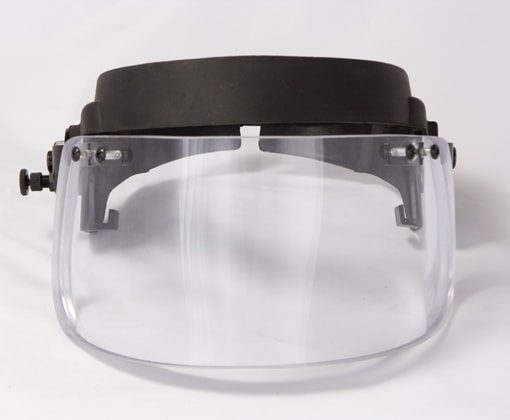

Our ballistic face shields can be retrofitted onto PASGT or COMBAT (ACH) style helmets with our unique Visor Fastening System (VFS). It can be securely attached or detached to most ballistic helmets with an adjustable rear lock. The visor can be locked into 3 positions including fully elevated, 45-degrees, and deployed.

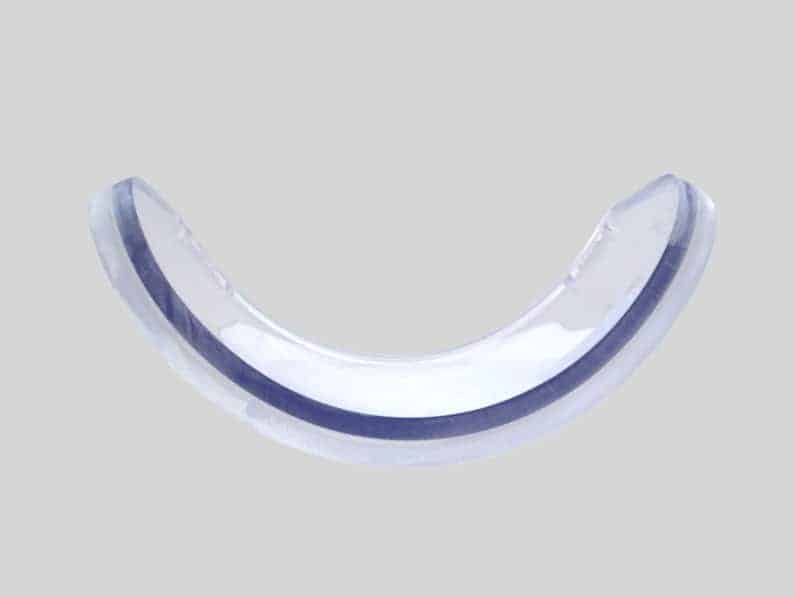

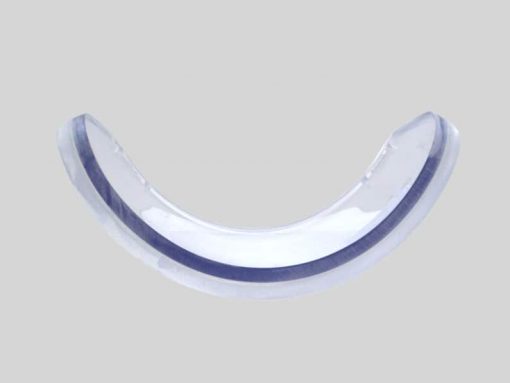

The face shield is laminated with PMMA (methyl methacrylate) and polycarbonate with a proprietary TPU (thermoplastic polyurethane) inter-layer.
Vigard™ visors have high light transmission and minimal distortion with lower width and thickness compared to similar ballistic face shields.
Our latest addition to the Vigard™ series is the Vigard™-Arctic, tested to NIJ Level IIA at -54°C.
Test report example:
Modified standards are used for protection levels.
|1||Product Code||Protection Level||Ballistic Impact||Fragmentation||Weight (g)|
|2||Vigard-T500||NIJ Level IIIA Plus||7.62 X 25mm Tokarev FMJ at 500 m/s||Stanag 2920 V50 = 790 m/s||1300|
|3||Vigard-T420||NIJ Level IIIA9||7.62 X 25mm Tokarev FMJ at 420 m/s||Stanag 2920 V50 = 790 m/s||1150|
|4||Vigard-TSC||NIJ Level IIIA Plus||7.62 X 25mm Steel Core at 420 m/s||Stanag 2920 V50 = 790 m/s||1300|
|5||Vigard-LT55||NIJ Level IIIA Plus||7.62 X 25mm Tokarev FMJ at 420 m/s at -55C||Stanag 2920 V50 = 790 m/s||1300|
|6||Vigard-LS55||NIJ Level IIIA Plus||7.62 X 25mm Steel Core at 420 m/s at -55C||Stanag 2920 V50 = 790 m/s||1600|
|7||Vigard-IIIAM||NIJ Level IIIA Multiple Shots||.44 Magnum at 420 m/s |
9mm FMJ at 420 m/s
7.62 X 25mm Tokarev FMJ at 420 m/s
|Stanag 2920 V50 = 790 m/s||1150|
|8||Vigard-IIIA9||NIJ Level IIIA Multiple Shots||9mm FMJ at 380 m/s |
7.62 X 25mm Tokarev FMJ at 350 m/s
|Stanag 2920 V50 = 710 m/s||950|
|9||Vigard-IIAS||NIJ Level IIA|
|357 Magnum at 380 m/s |
9mm FMJ at 350 m/s
7.62 X 25mm Tokarev FMJ at 310 m/s
|Stanag 2920 V50 = 580 m/s||680|
NIJ Level I
|.38 Special at 290 m/s||Stanag 2920 V50 = 500 m/s||550|

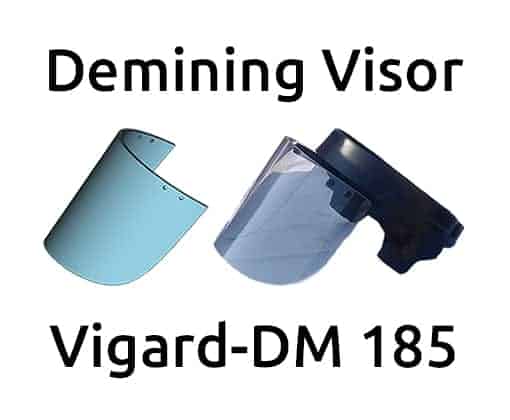

|11||Vigard-DM||Demining (6mm thick)||N/A||Stanag 2920 V50 = 290 m/s||340|
|12||Vigard-DM 185||Demining (6mm thick)||N/A||Stanag 2920 V50 = 290 m/s||465|
