Bogard™ Ballistic Shield
Movable Ballistic Shieldbogard 3Movable Ballistic Shield

Mobile Ballistic Shield – Bogard™

Bogard™ Ballistic Shield addresses the need for a robust, stable, deploy-able, and highly maneuverable shield platform.

For detailed specifications, see below.



Request Info/Quote

Category:

Product Description

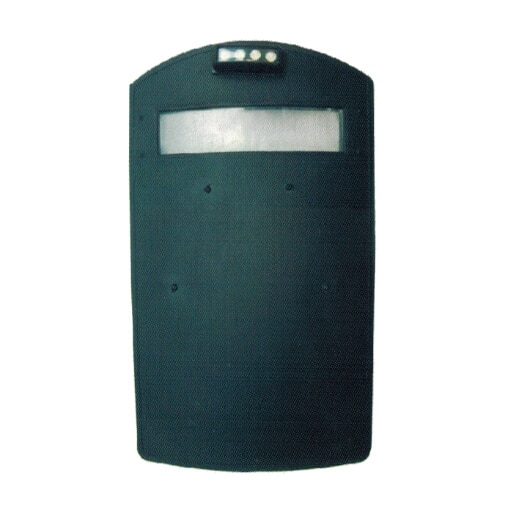

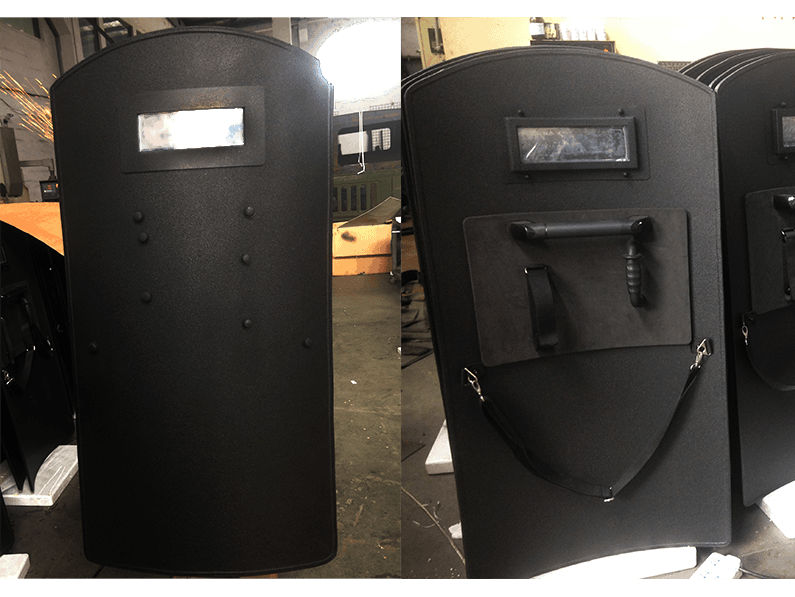

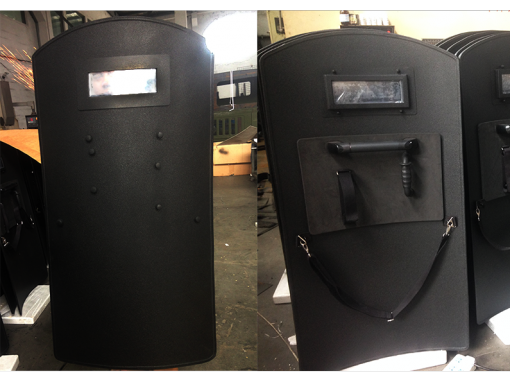

Bogard™ Mobile Ballistic Shield

Bogard™ Ballistic Shield is a Level III, Level III+, Level III++, and Level IV armored mobile barrier with trolley is a new development from Armor USA which addresses the need for a robust, stable, and highly maneuverable shield platform while enabling rapid shield dismounting from the platform for handheld operations.

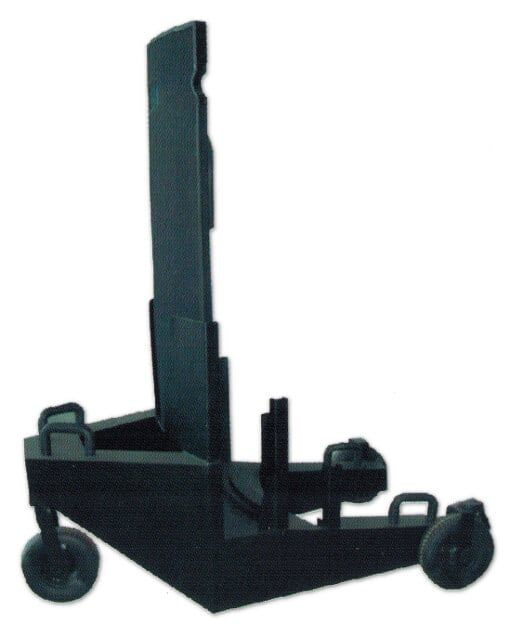

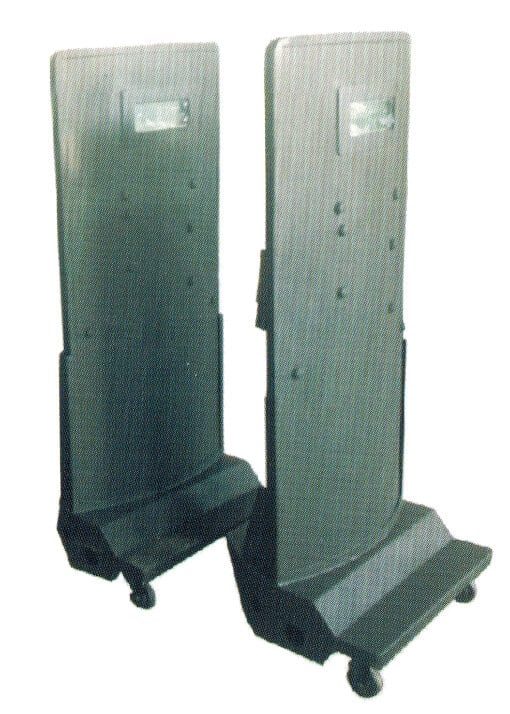

The two rear wheels have brakes and all four solid rubber wheels have independent steering. The shield is securely mounted onto the Quad Trolley by means of parallel vertical slotted bars and can be mounted and dismounted within seconds without the need for any tools.

Bogard™ Mobile Ballistic Shield is constructed from either 100% UHMW PE or ceramic tiles and is rated to NIJ Level III+ and Level IV. This unofficial level covers the traditional NIJ Level III performance for 6 strikes of 7.62 x 51mm NATO Ball (US designation M80 Ball) and also the widely recognized threat from AK47 MSC 7.62 x 39 mm round, and 7.62 mm AP.

Test reports available upon request:     Sample Test Report



SPECS



Available Dimensions: Body – 60 x 120 cm , Window – 15 X 30 cm

ABCDE+
1PROTECTION LEVELPRODUCTMATERIALSIZEWEIGHT (KG)
2NIJ0101.04 Level IIIA
.44 magnum at 420 m/s
9mm FMJ at 420 m/s
7.62x25mm Tokarev at 420 m/s
AMB-IIIAPolyethyleneBody 1200mm X 600 mm
Window 350 X 150
5
3NIJ0101.04 Level III
7.62x51mm NATO
5.56x45mm M193
AMB-IIIPolyethyleneBody 1200mm X 600 mm
Window 350 X 150
22
4NIJ0101.04 Level III+
7.62x51mm NATO
7.62x39mm MSC
AMB-IIIPPolyethyleneBody 1200mm X 600 mm
Window 350 X 150
24
5NIJ0101.04 Level III++
7.62x51mm NATO
7.62x39mm MSC
5.56x45mm SS109
AMB AIIIPK
AMB SIIIPK
Al2O3
SiC
Body 1200mm X 600 mm
Window 350 X 150
34
29
6NIJ0101.04 Level IV
7.62x63mm AP
7.62x54mm API
AMB AIV
AMB SIV
Al2O3
SiC
Body 1200mm X 600 mm
Window 350 X 150
50
40
+
