Unigard™ Lightweight Ballistic Interior for Armored Combat Vehicles

Lightweight Ballistic Interior for Armored Combat Vehicles – Unigard™

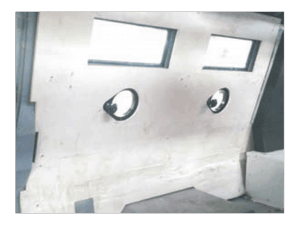

Unigard™ Lightweight Ballistic Interior can be molded under high temperature and pressure to take complicated shapes of the engine compartments, etc. This makes armoring easy and simple.

For detailed specifications, see below.

Request Info/Quote

Category:

Product Description

Unigard™ Lightweight Ballistic Interior for Armored Combat Vehicles

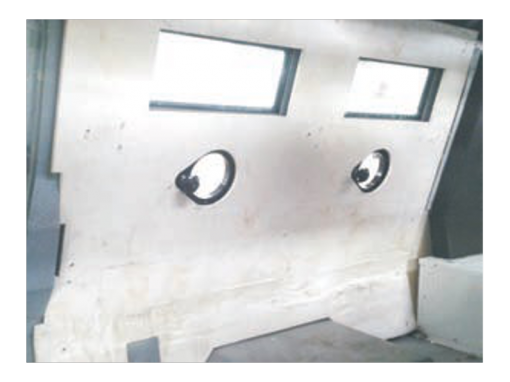

Unigard™ Lightweight Ballistic Interior is a combination of a UHMPE panel, a heat insulation pore-layer, and interior fabric. It is lightweight, easy to install and performs multi-functions. By replacing the conventional interior with Unigard Lightweight Ballistic Interior armored vehicles can save from 10-15 kg/m².

Unigard™ Lightweight Ballistic Interior can be molded under high temperature and pressure to take complicated shapes of the engine compartments, etc. This makes armoring easy and simple.



Test reports available upon request:     Sample Test Report



SPECS


ABCDE+
1Product CodeProtection LevelBallistic ThreatWeight (kg/m2)Thickness (mm)
2Unigard - S1STANAG 4569 Level I7.62 x 51 mm NATO
5.56 x 45 mm SS109
5.56 x 45 mm M193
6-146-14
3Ceragard - S2STANAG 4569 Level II7.62 x 39 mm API20-2510-14
4Ceragard - S3STANAG 4569 Level III7.62 x 51 mm AP
7.62 x 54R mm B32
25-3412-16
5Ceragard - S4STANAG 4569 Level IV14.5 mm B32 APITBDTBD
+
