Augard™ & Ligard™ – Ballistic Glass for Combat Armored Vehicles
Augard™ & Ligard™ – Ballistic Glass for Combat Armored Vehiclesaugard ligard 3Ballistic GlassBallistic Glass

Ballistic Glass for Combat Armored Vehicles – Augard™ & Ligard™

Features of Augard/Ligard Transparent Armor:

  • Distortion free windshield for safe and comfortable driving.
  • Heated deicing/defogging with ITO coating or
    wiggle wire mat, to melt 3mm ice at -43℃ within 15 mins.
  • Stealthy to K, X, C radar band.
  • Option of borosilicate glass and AlMgO4 transparent
    ceramics for significant lighter weight.
  • For detailed specifications, see below.



    Request Info/Quote

    Category:

    Product Description

    Augard™ & Ligard™ – Ballistic Glass for Combat Armored Vehicles

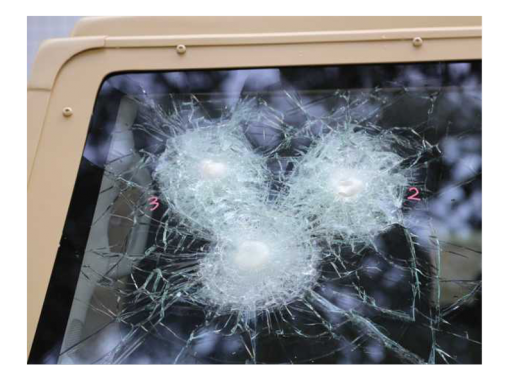

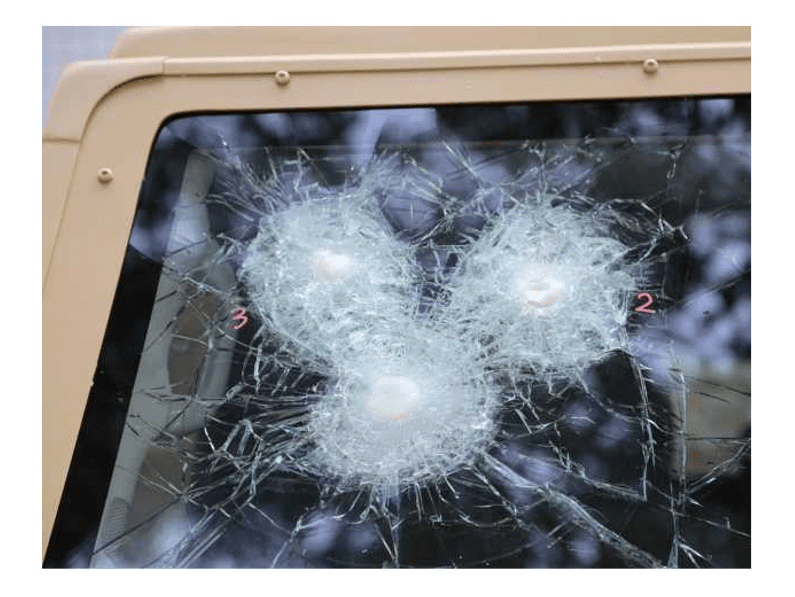

    Designed to provide lightweight protection for military armored personnel carriers (APC), light armored vehicles (LAV). It is made with asymmetrical multi-layer laminated glass clad poly carbonate. Available with a variety of constructions to defeat a range of threat levels . Available protection against handgun, assault rifle projectiles, improvised explosive devices (IEDS) and artillery fragments, at minimum weight and thickness.



    Test reports available upon request:     Sample Test Report



    SPECS


    ABCDE+
    1Product CodeProtection LevelBallistic ThreatGlass Weight (kg/m2)Thickness (mm)
    2Augard - S1STANAG4569
    Level I
    7.62 x 51mm NATO Ball
    5.56 x 45mm SS109
    5.56 x 45mm M193
    8439
    3Ligard - BS1STANAG4569
    Level I
    7.62 x 51mm NATO Ball
    5.56 x 45mm SS109
    5.56 x 45mm M193
    7536
    4Augard - S2STANAG4569
    Level II
    7.62 x 39 mm API BZ13861
    5Ligard - BS2STANAG4569
    Level II
    7.62 x 39 mm API BZ12054
    6Ligard - CS2STANAG4569
    Level II
    7.62 x 39 mm API BZ8830
    7Augard - S3STANAG4569
    Level III
    7.62 x 51 mm AP (WC)
    7.62 x 54mm B32 API
    17979
    8Ligard - BS3STANAG4569
    Level III
    7.62 x 51 mm AP (WC)
    7.62 x 54mm B32 API
    15172
    9Ligard - CS3STANAG4569
    Level III
    7.62 x 51 mm AP (WC)
    7.62 x 54mm B32 API
    10236
    10Augard - S412n/a12.7 x 114 mm API MK2 11234103
    11Augard - S4STANAG4569
    Level IV
    14.5 x 114 mm API/B32336148
    +
