Ceramic Vehicle Armor Kit – Ceradon™

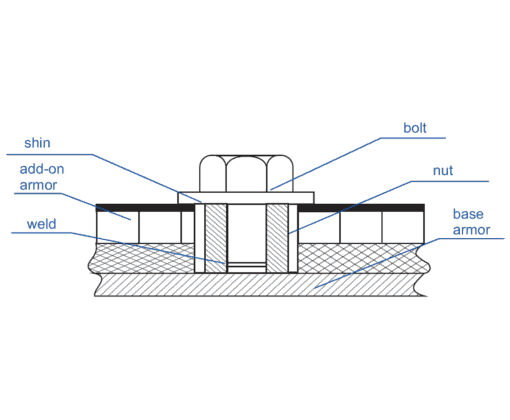

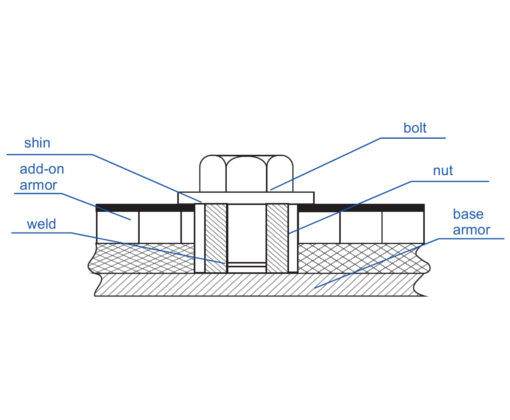

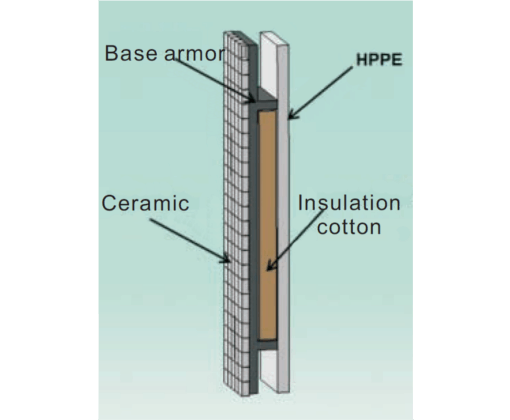

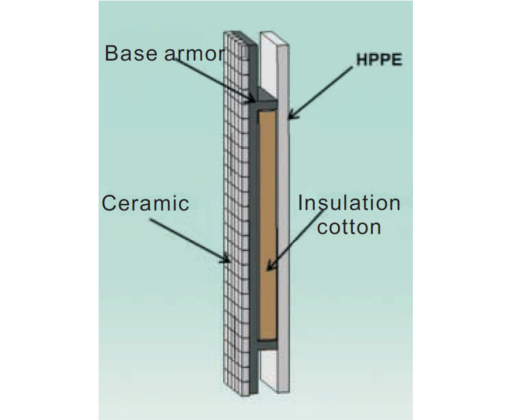

Ceradon is a crew-installable ceramic add-on armoring kit. It can be bolted to the base steel armor hull on a Armored Personal Carrier or Light Armored Vehicle for a convenient upgrade to a higher levels of threats. It is detachable from the base armor of APCs or LAVs during daily training or patrolling, and can be reattached to the base armor within a few minutes.

For detailed specifications, see below.



Request Info/Quote

Category:

Product Description

Ceradon™- Ceramic Vehicle Armor Add On Kit

Ceradon™is a crew-installable ceramic add-on armoring kit to is designed to bolt onto base steel armor hull on a APC or LAV. This vehicle armor is detachable from the base armor in APC/LAV daily training or patrolling, and can be bolted in to base protection within a few minutes to upgrade the protection against higher level of threats.

Test reports available upon request:   Sample Test Report



SPECS


ABCDEFG+
1Product CodeProtection LevelBallistic ImpactICW 0 mm Base Armor
Thickness (mm)
ICW 3 mm Base Armor
Thickness (mm)
ICW 6 mm Base Armor
Thickness (mm)
ICW 8 mm Base Armor
Thickness (mm)
2Ceradon - S1STAGNAG4569
Level I
7.62 x 51 mm NATO Ball
5.56 x 45 mm SS109
5.56 x 45 mm M193
3.0 - 3.51.81.00
3Ceradon - S2STAGNAG4569
Level II
7.62 x 39 mm API BZ4.6 - 5.2TBD1.5-2.01.1-1.5
4Ceradon - S3STAGNAG4569
Level III
7.62 x 51 mm AP(WC)
7.62 x 54 mm B32 API
6.0 - 7.5TBD4.0-5.02.3-3.0
5Ceradon - S412STAGNAG4569
Level IV127
12.7 x 114 mm API MK211TBDTBD7.0-9.06.0-7.0
6Ceradon - S4STAGNAG4569
Level IV
14.5 x 114 mm API/B32TBDTBDTBD8.0-9.2
+
