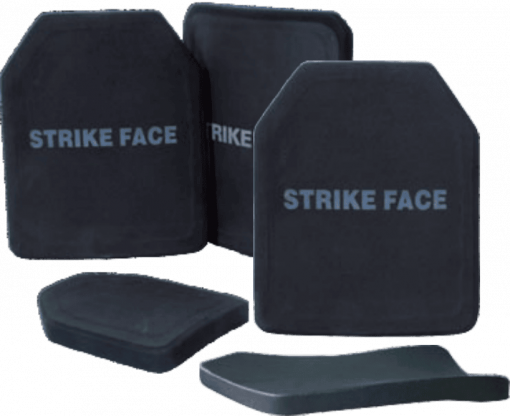

Ceragard/Unigard™ – Armor Plates

Features:
• AL2O3/SiC/B4C ceramics with PE backing for multi-hit protection up to NIJ Level IV
• Ultra-lightweight NIJ III/III+ protection, waterproof, and stable in ±40℃
• Non-Newtonian fluid models meet NIJ 0101.06 standards with exceptional lightness
Unigard™ lightweight polyethylene (HPPE) plates. – Low profile and ultra lightweight protection.

Category:

Description

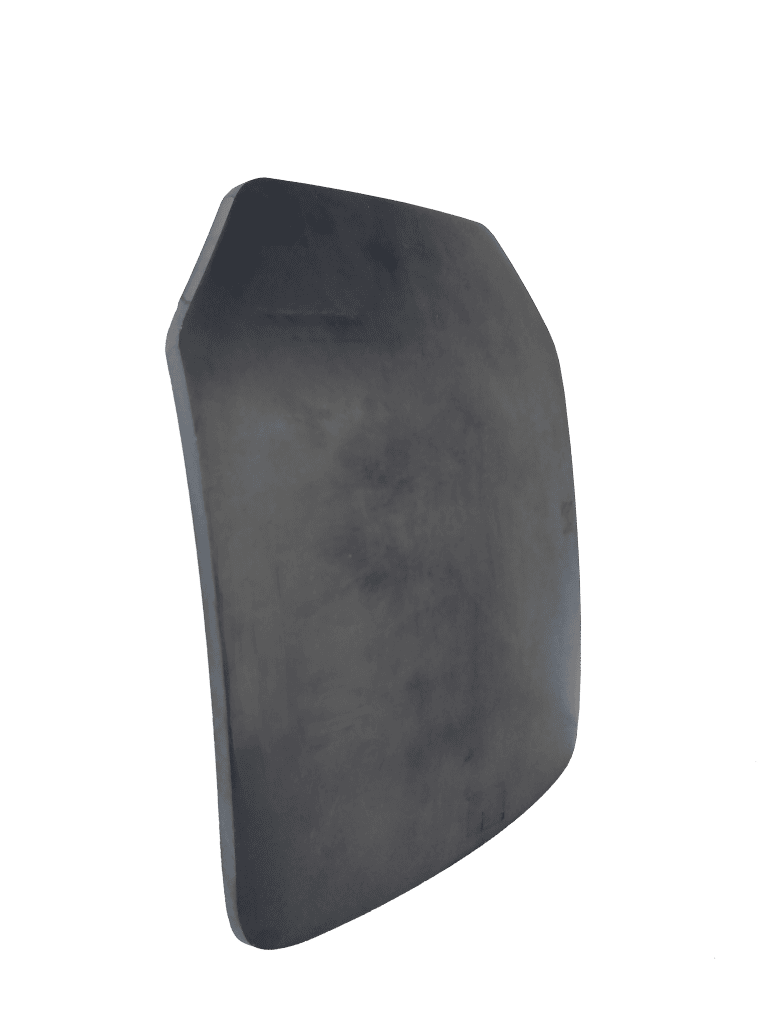

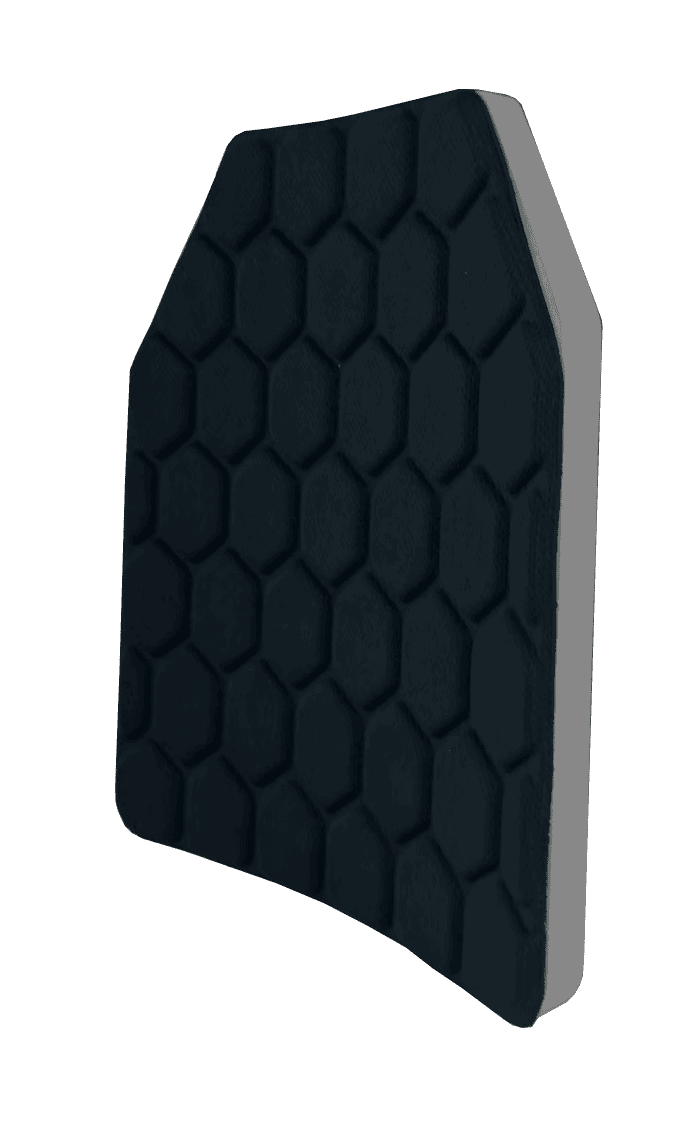

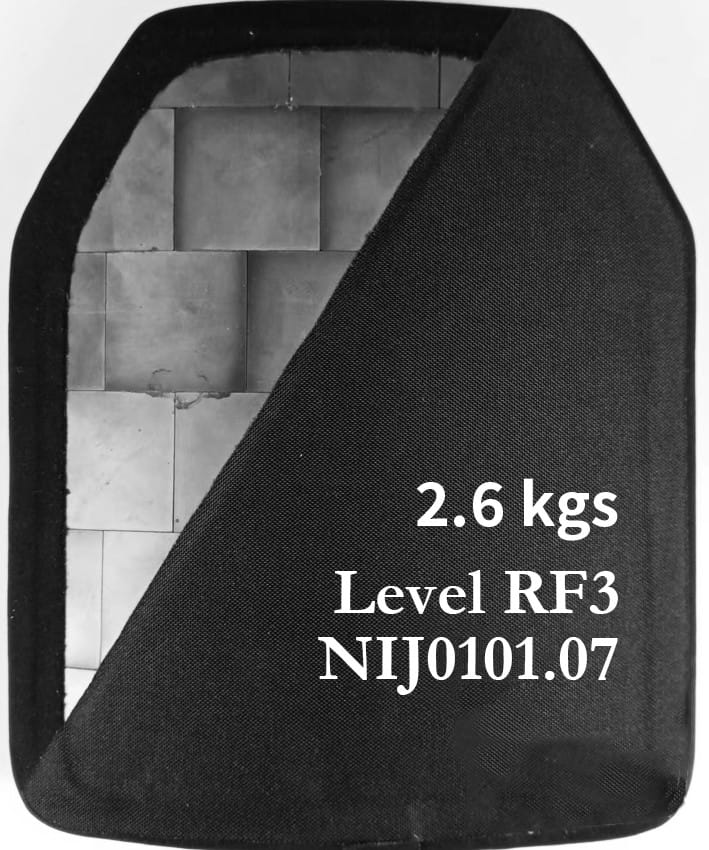

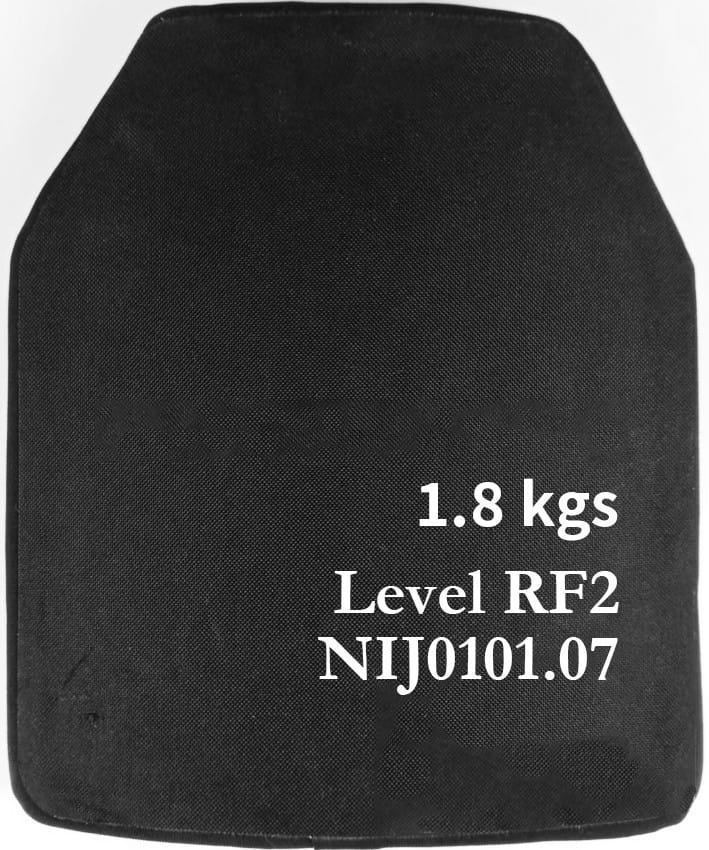

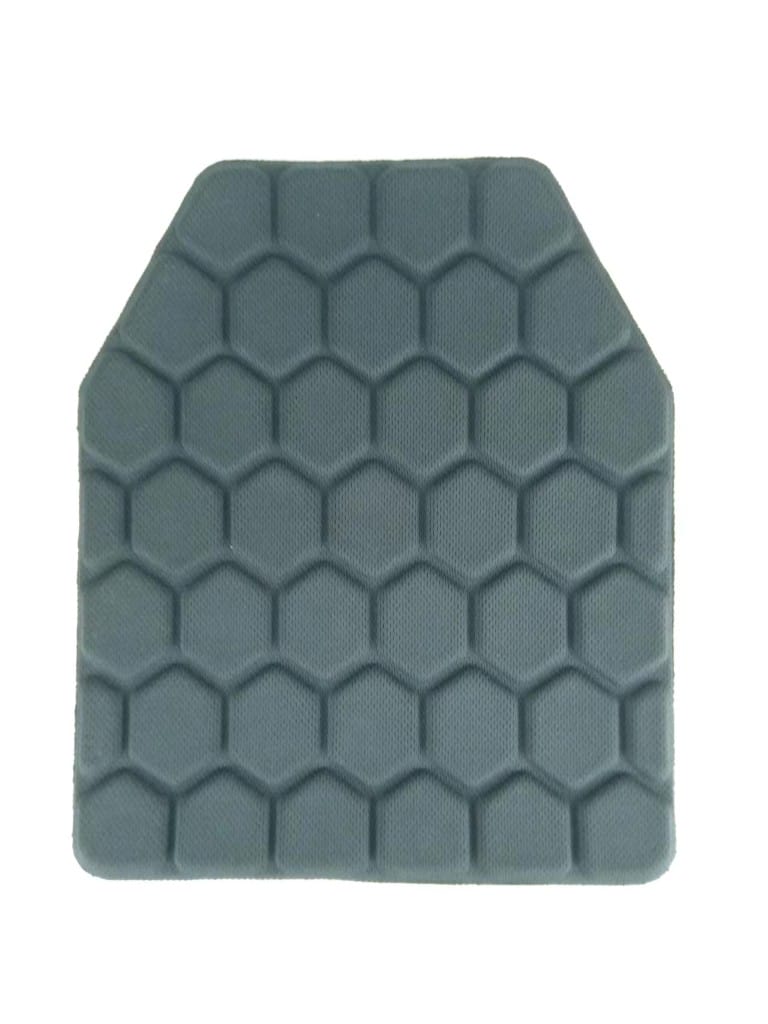

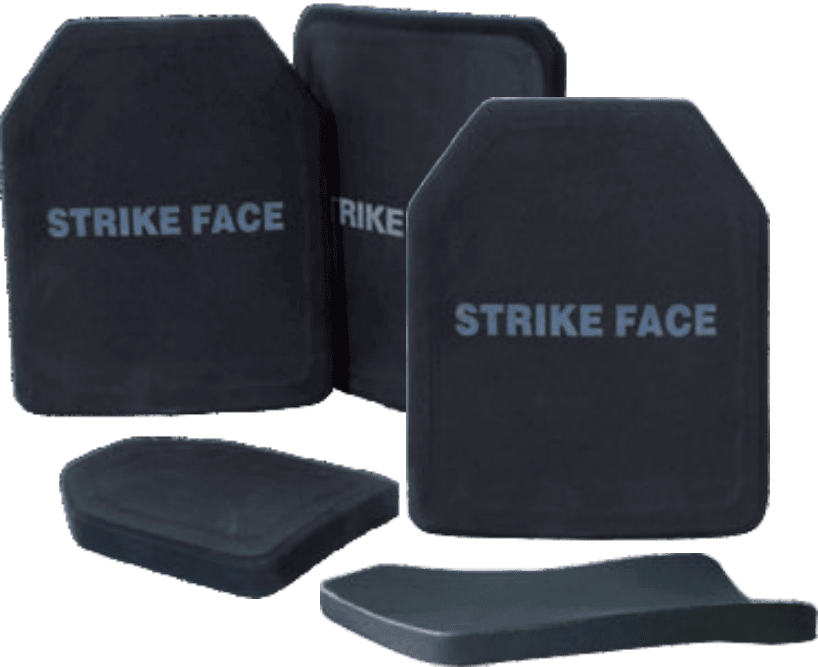

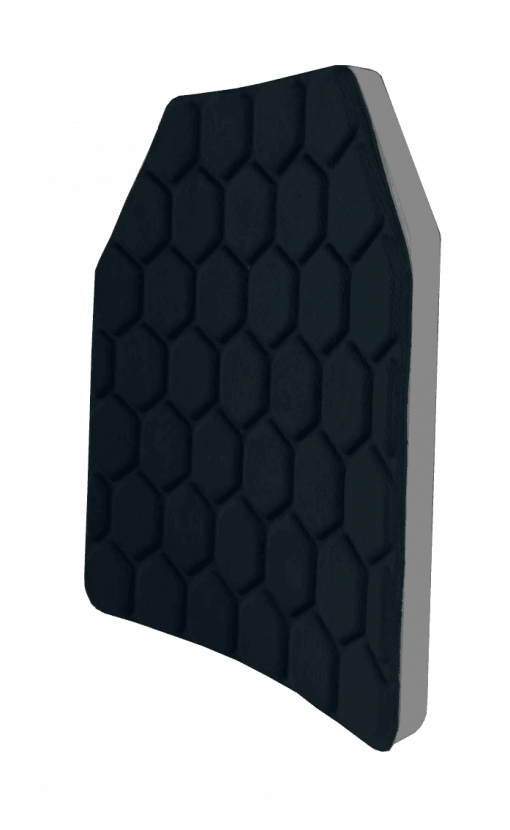

Bogard™ ceramic armor plates are an integration of hard AL2O3/SiC/B4C monolithic or hexagon  ceramics with PE backing, with optimized composite construction to produce rugged multi-hit armor, reaching protection levels NIJ Level III, Level III++, and Level IV.

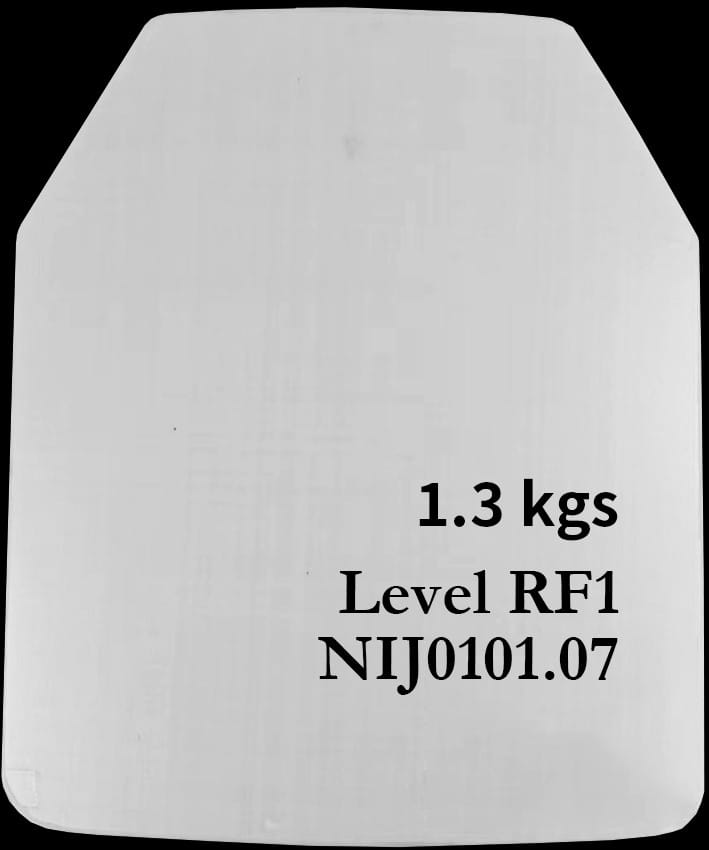

Bogard™  PE armor plates are by far the ultimate solution to provide protection level NIJ Level III and III plus at ultra-light weight. The panels are waterproof and are tested to work properly between±40℃.

With non-Newtonian fluid backing,  Bogard™ is qualified to NIJ 0101.06 with exceptional lightweight.

Test reports available upon request: Test Report

SPECS

Product Code Protection Level Ballistic Protection Weight
Bogard-N3c

  NIJ Level III

ICW IIIA Body Armor

  7.62x5 lmm NATO 7.62X39mm MSC  5.56x45mmM193

1.15kgs
Bogard-AN3C 1.70kgs
Bogard-SN3C 1.50kgs
Bogard-N3

 NIJ Level III standAlone

1.30kgs
Bogard-AN3
1.90kgs
Bogard-SN3 1.65kgs
Bogard-AN4C

NIJ Level IV

ICW IIIA Body Armor

 7.62x63mmm2ap 7.62X54RAP I

7.62x39m mAP

2.90kgs
Bogard-SN4C 2.40kgs
Bogard-BN4C 2.10kgs
Bogard-AN4

NIJ Level IV standAlone

3.10kgs
Bogard-SN4 2.60kgs
Bogard-BN4 2.30kgs
