Armor Plates

Features:
• AL2O3/SiC/B4C ceramics with PE backing for multi-hit protection up to NIJ Level IV
• Ultra-lightweight NIJ III/III+ protection, waterproof, and stable in ±40℃
• Non-Newtonian fluid models meet NIJ 0101.06 standards with exceptional lightness
Unigard™ lightweight polyethylene (HPPE) plates. – Low profile and ultra lightweight protection.

Category:

Description

Unigard™ and Ceralite™ armor plates are lightweight solutions for armor plates, with PE plates for NIJ0101.07 RF1 solution and integrated  AL2O3/SiC/B4C monolithic or hexagon  ceramics with PE backing for RF2 and RF3 solutions, with optimized composite construction to produce rugged multi-hit armor.

Unigard™ and Ceralite™  are by far the ultimate solution to provide protection Levels NIJ0101.07 Level RF1-RF3 with ultra-light weight. The panels are waterproof and are tested to work properly between±40℃.

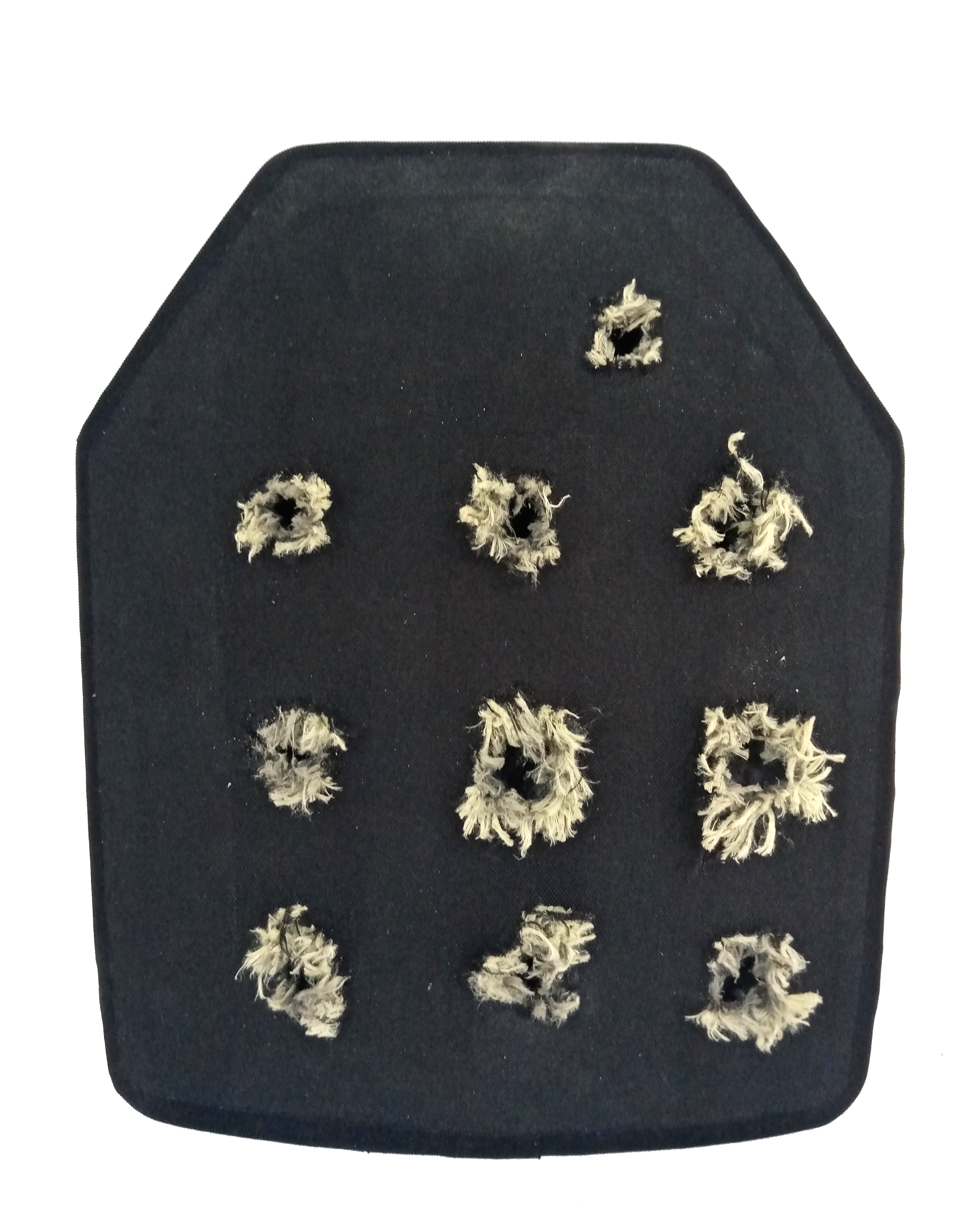

Diamond™-BHT  armor plate is an innovative solution especially designed for RF3 multi-hit. Made of  B4C, super-hard powder, and toughening agent by reaction bonded process, with Vicker’s hardness of 105 GPa, which is 3 times harder than  B4C or SiC, it can confidently defeat > 6 shots of M2AP or Dragunov.

Test reports available upon request: Test Report

SPECS

Product Code Material Ballistic Performance Ballistic Protection Weight
Unigard-RF1 PE NIJ 0101.07 RF1 7.62x51mm NATO
7.62x39mm MSC
5.56x45mm M193
1.25 kgs
Cerelite-RF2B PE + B₄C
PE + SiC
PE + Al₂O₃
NIJ 0101.07 RF2 7.62x51mm NATO
7.62x39mm MSC
5.56x45mm M193 / SS109
1.65 kgs
Cerelite-RF2S 1.80 kgs
Cerelite-RF2A 2.10 kgs
Cerelite-RF3B PE + B₄C
PE + SiC
PE + Al₂O₃
NIJ 0101.07 RF3 7.62x63mm M2AP
7.62x54mm API Dragunov
7.62x39mm API
2.65 kgs
Cerelite-RF3S 2.80 kgs
Cerelite-RF3A 3.25 kgs
Diamond-RF3 PE + BHT NIJ 0101.07 RF3 7.62x39mm API 2.65 kgs
