Description
Bogard™ Mobile Ballistic Shield

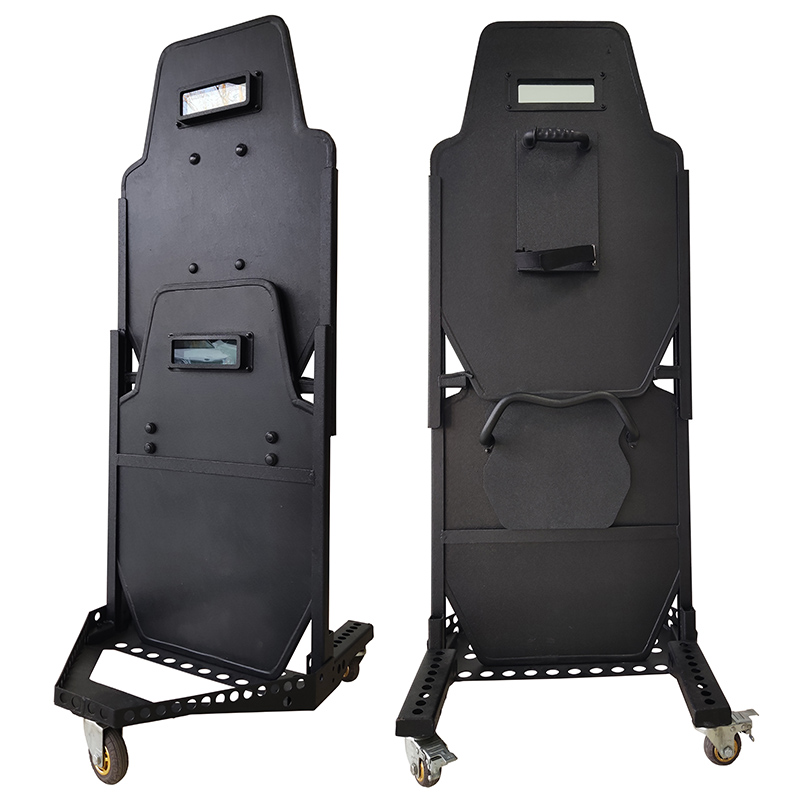

The Level III+ and Level IV armored mobile barrier with trolley is a new development which has addressed the need to provide a robust, stable and highly maneuverable shield platform for shield deployment whilst at the same time enabling rapid shield dismounting from the platform for hand-held operations.
The trolley is made from box section mild steel and comprises three parts which are bolted together with three 8mm thumb screws to enable quick deployment. The two rear wheels are braked and all four solid rubber wheels have independent steering. The shield is securely mounted onto the quad trolley by means of parallel vertical slotted bars and can be mounted and dismounted within seconds without the need for any tools.
The shield is constructed from 100% UHMW PE and ceramic tiles and is rated to NIJ Level III+ and Level IV. This unofficial level covers the traditional NIJ Level III performance for 6 strikes of 7.62 × 51mm NATO Ball (M80 Ball) and also the widely recognized threat from 7.62 × 39mm MSC, 5.56 × 45mm M193 / SS109, and 7.62 × 63mm AP.
PRODUCT SPECIFICATIONS
| Product | Protection Level | Material | Size | Weight |
|---|---|---|---|---|

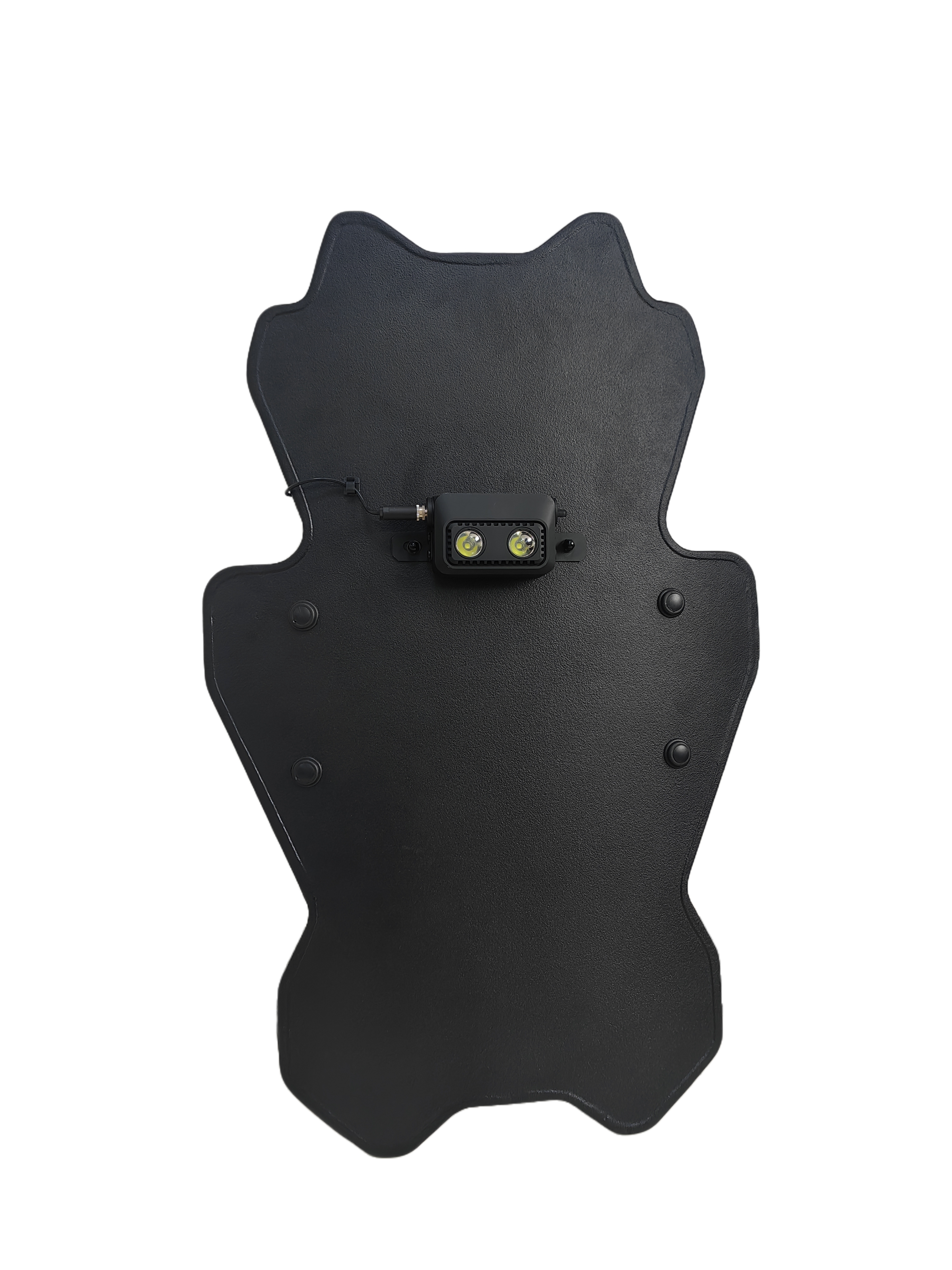

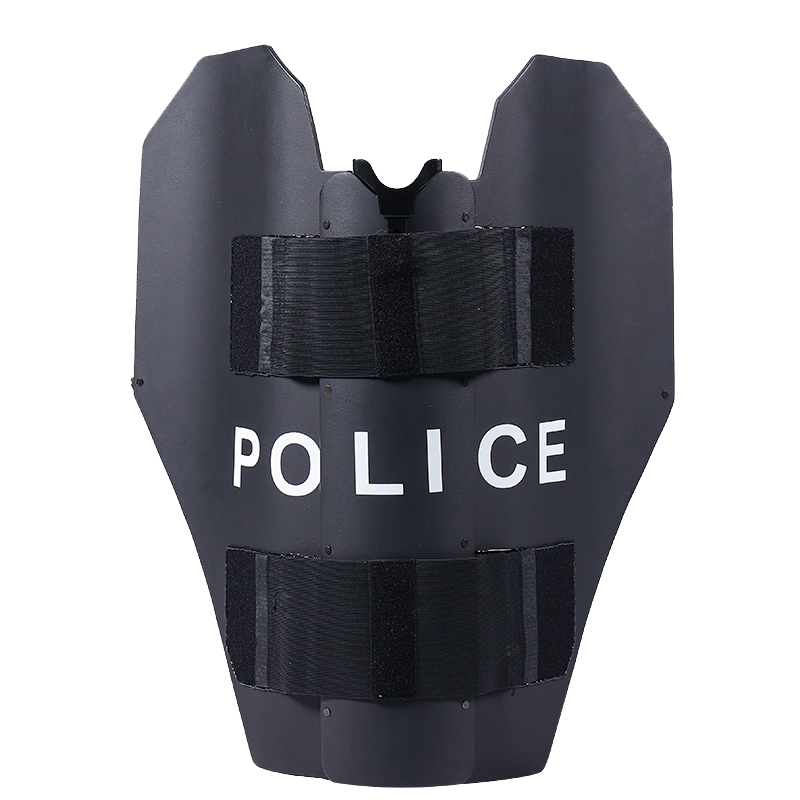

| AMB-B4 | NIJ IIIA / CEN B4 4.49×19mm FMJ 7.62×51mm NATO |
PE |
Body 1200 × 600 mm Window 300 × 150 mm |
6 kg |

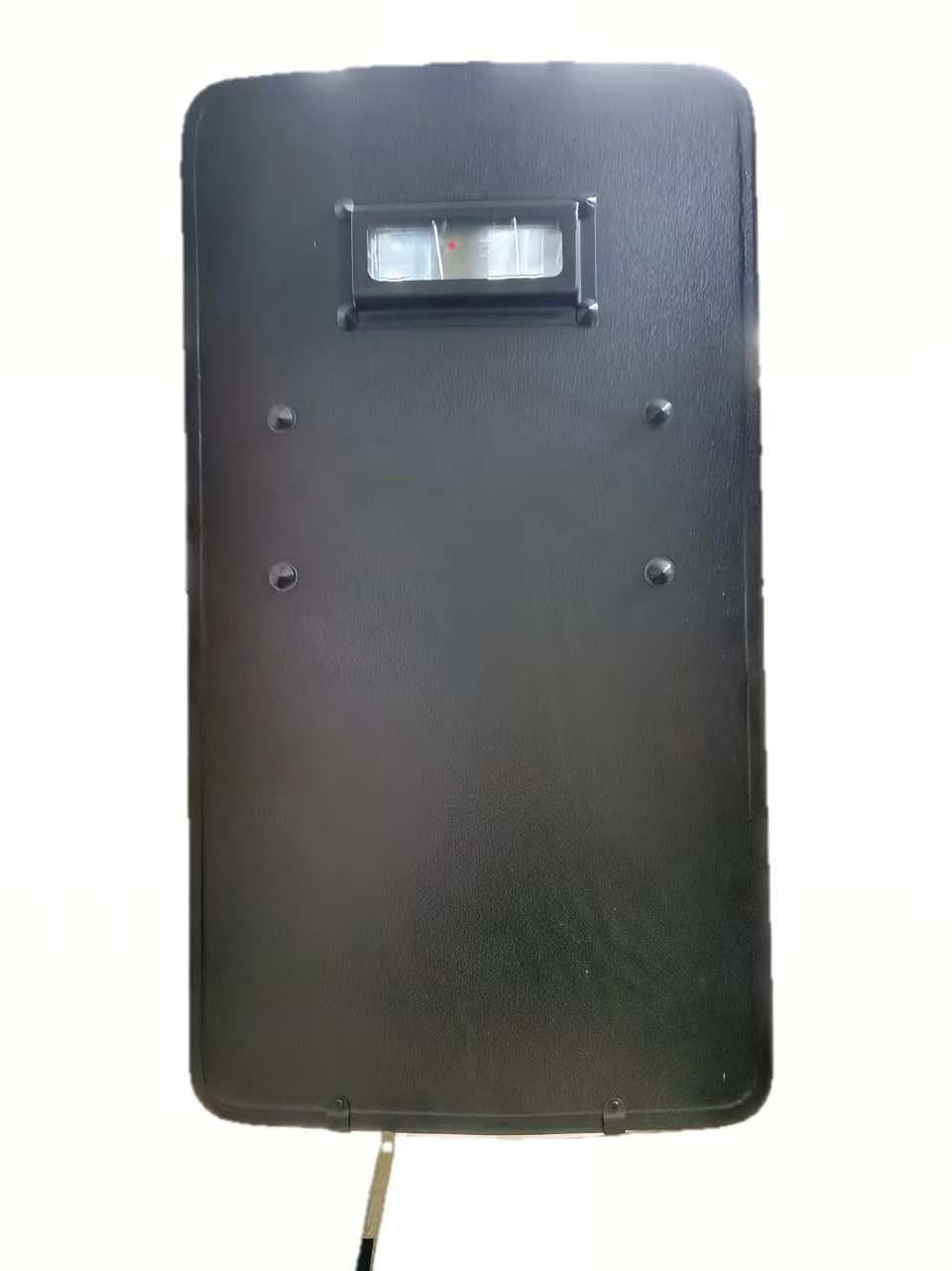

| AMB-B6 | NIJ III / CEN B6 7.62×51mm NATO 5.56×45mm M193 7.62×39mm MSC |
PE | 22 kg | |

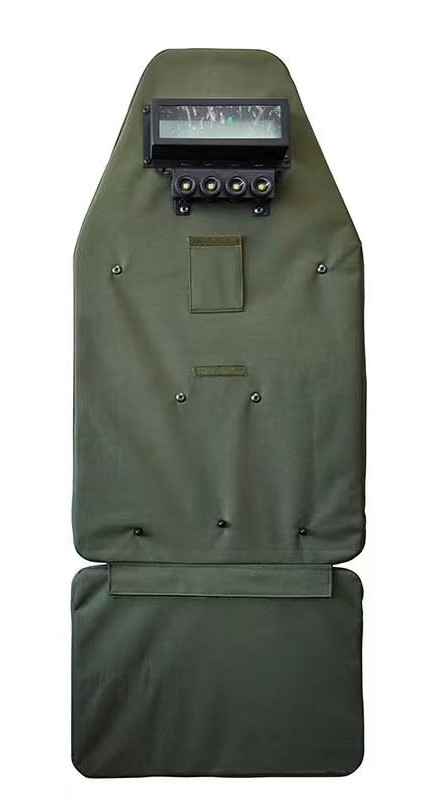

| AMB-S1 | STANAG II 7.62×51mm NATO 7.62×39mm MSC 5.56×45mm M193 |
Al₂O₃ / SiC + PE | 28 kg | |
| AMB-S2 | STANAG III 7.62×51mm NATO 5.56×45mm AP 5.56×45mm SS109 |
Al₂O₃ / SiC + PE | 34 kg | |
| AMB-B7 | NIJ IV / CEN B7 7.62×63mm AP 7.62×54mm API |
Al₂O₃ / SiC + PE | 50 kg |
Test reports available upon request:
Request Test Report
